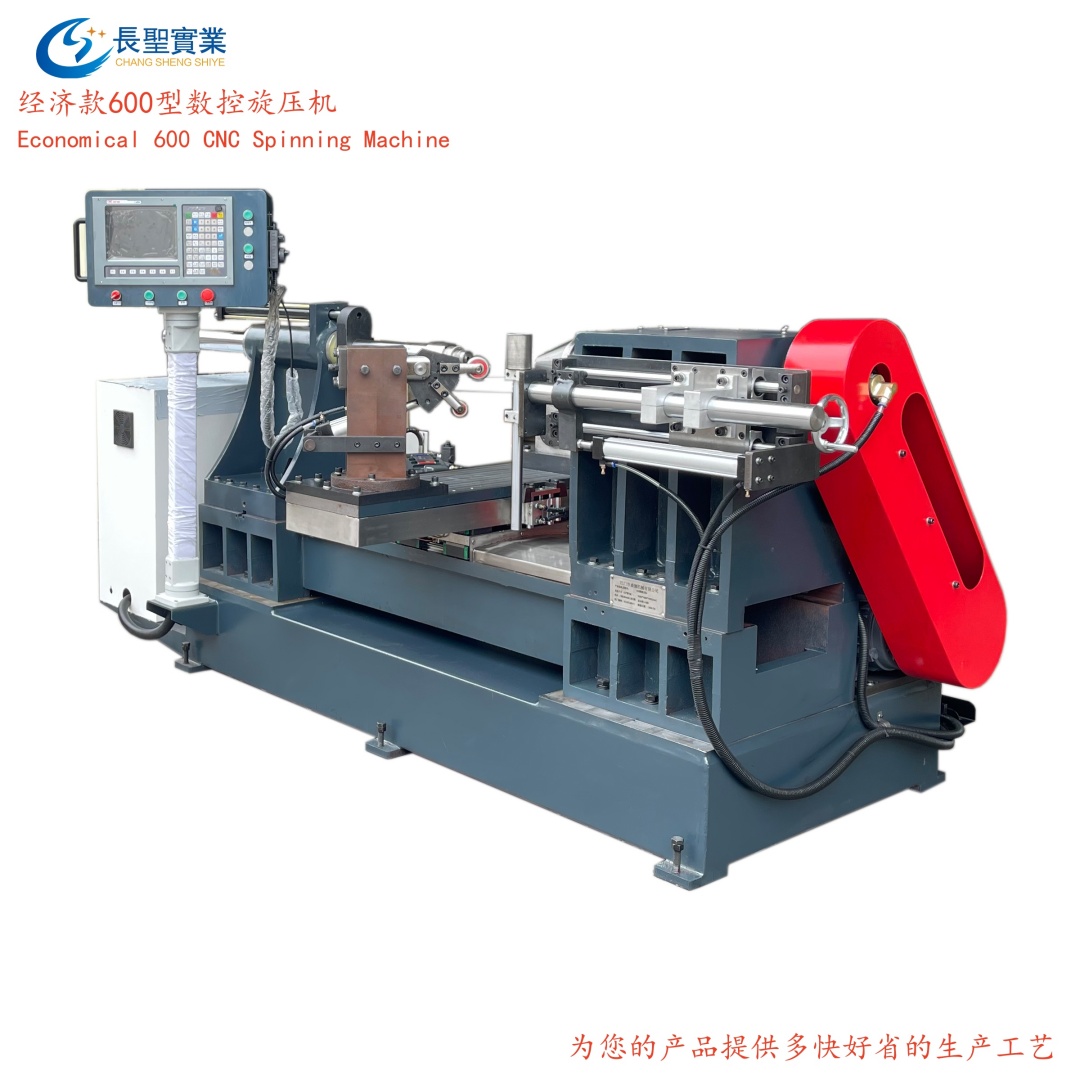

Economical 600 CNC Spinning Machine Entity Manufacturer
  • Economical 600 CNC Spinning Machine Entity Manufacturer
Economical 600 CNC Spinning Machine Entity Manufacturer

Economical 600 CNC Spinning Machine Entity Manufacturer

1. Equipment introduction:
CNC spinning machine is manufactured by combining modern CNC technology and advanced processing and testing equipment. This spinning machine is designed for conventional products. After digital precision control, it can produce workpieces of various sizes and shapes through the spinning forming process to meet the personalized needs of customers.
The workpiece replacement process is simple. You only need to install a new mold, call up the corresponding program, and perform precise calibration to quickly put it into production.
The machine has undergone strict process flow and quality control, which can achieve high consistency in mass production and ensure that each product meets high quality standards.
The equipment is easy to operate. Just start it with one button and manually load and unload the workpiece.
In production applications, the surface of the processed products is smooth and the wall thickness is more uniform. It can significantly reduce material waste, improve product dimensional accuracy, smooth arc transition and accurate arc, and greatly reduce the labor of workers to ensure the safety of employees' operations.
  • Product Information
@metal_spinning_machinery #CNCspinninglathe#cncspinningmachine #Loudspeaker ♬ Sinner Saint - Jeddy Knox

型号/model

CD-400-A

CD-600-A

CD-800-A

系统配置(System Configuration)

谷戈Gu Ge

伺服电机(Servo Motor)

维控wecon

维控wecon

维控wecon

刀架形式(Tool holder form)

2套旋转刀架

2 sets of rotating tool holders

刀架数量(Number of tool holders)

3

最大过料直径(Maximum feeding diameter)

450mm

650mm

850mm

最大加工厚度(Maximum processing thickness)

铁1.5mm以内

Iron within 1.5mm

铁2mm以内

Iron within 2.0mm

X轴最大行程(X-axis maximum travel)

350mm

400mm

500mm

Y轴最大行程(Maximum travel of Y axis)

225

325

425

加工件长度(Length of workpiece)

350

500

600

主轴转速(Spindle speed)

10-2800转/分钟    10-2800 rpm

主轴端面到尾座端面跨距(Distance from spindle end to tailstock end)

600mm

1000mm

1000mm

尾座调节行程(Tailstock adjustment stroke)

400mm

500mm

500mm

主轴变频电机功率(Spindle variable frequency motor power)

5.5kw

7.5kw

15kw

机器重量(Machine weight)

2100kg

3100kg

3200kg

料位支撑架吹气挡板

(Level support frame air blowing baffle)

有

have

设备尺寸 (Device size)

2700x1450x1550

3050x1650x1600

3300x2300x1650
