DD-XY-3000-2 is a high-performance spinning machine with integrated SC/CNC control, particularly suitable for the production of larger spun parts. The spinning machine with a multi-part machine bed guarantees a consistently high quality of the parts produced thanks to its moulded headstock and cross support. This machine can be used to produce a wide range of spun parts made from a wide variety of materials in many different shapes and contours.

1. The punching configuration save function allows you to simply call up the program when changing workpieces (significantly reducing debugging difficulty and time, and enhancing product consistency). 2. The support mechanism utilizes a pneumatic cylinder for strong support and minimal radial swing during workpiece rotation. 3. The flange width adjustment utilizes a stepped module for more stable flange width and time-saving adjustment. 4. The spindle is driven by a high-power servo motor and a precision planetary reducer, resulting in higher production efficiency and more consistent quality.

1. Pre-pressure relief technology helps prevent hydraulic shock and extend the life of pipes and seals. 2. High-quality hydraulic components ensure the stability of the hydraulic system. 3. All system components are easy to maintain and troubleshoot. The oil pump is bottom-mounted and uses positive pressure for suction. Filters, level gauges, and other components are equipped with alarms that automatically indicate faults. The hydraulic station is independent of the machine base, making it easy to maintain and away from heat sources. 4. The system is manufactured in strict accordance with international and industry standards, with optimal pipe curvature radii to minimize shock and vibration. 5. The system design focuses on energy conservation, minimizing power waste, and reducing heat sources. 6. High-precision suction and return oil filters ensure oil cleanliness. 7. Common faults and troubleshooting methods for the flanging machine hydraulic system are provided. 8. The hydraulic system is manufactured by a professional hydraulic manufacturer and in accordance with the national standard GB3766-83 to ensure manufacturing quality. 9. The fuel tank is shot-blasted, pickled, and surface-cleaned, then coated with an oil-resistant varnish to ensure cleanliness. An air filter and fine filter ensure effective oil filtration and ventilation. The system operates within a temperature range of 15°C to 65°C, controlled by an electric heater or cooler.

Upper and lower rib flanging machine Equipment function: upper and lower inner flanging, upper and lower rib flanging

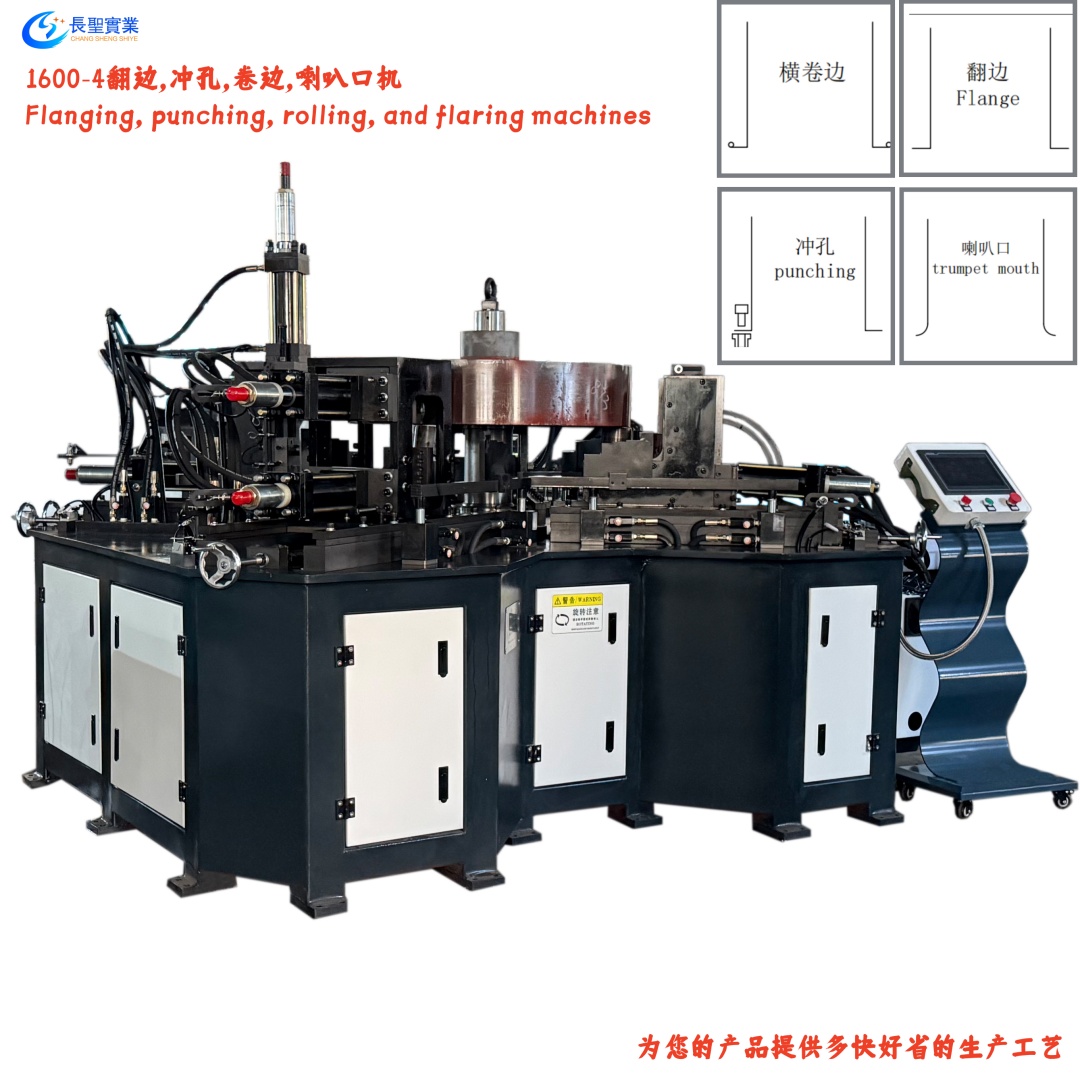

Equipment functions: flanging, punching, curling, pre-bending, pressing

Equipment function: This equipment integrates four core functions: flanging, flaring, punching and folding. It can accurately complete the complex surface processing requirements of carbon steel materials (folding thickness ≤ 4mm) and other metal materials. It is suitable for industrial scenarios such as pipe end processing and container sealing reinforcement.

Equipment features: 1. The spindle is equipped with a high-power servo motor and a star reducer to improve punching efficiency and indexing accuracy. 2. This type of machine has an annual output of about 100 units, which can provide strong technical support. 3. The support device adopts a cylinder support, which has strong support force and small radial swing when the workpiece rotates. 4. The flange width adjustment adopts a step-type module, the flange width is more stable, and the adjustment type saves time. 5. The corner star reducer is used to make the machine lower and more convenient to operate.

The main features of CNC flanging machines without molds include: ‌Save equipment costs and improve production efficiency‌. This type of flanging machine does not require molds for flanging, which saves the cost of mold purchase and maintenance. At the same time, since there is no need to change the mold, CNC technology is used for control, which greatly saves debugging time and improves production efficiency‌1. In addition, CNC flanging machines without molds also have the following characteristics: ‌The system has a molding preservation function‌: This eliminates the waste of the first piece and makes production more efficient and economical‌1. ‌Wide processing range‌: The diameter range of the equipment can be customized according to customer needs, which greatly increases the utilization rate of the equipment. At the same time, this type of equipment usually has a variety of functional configurations, such as inner rotation, outer flanging, inner flanging, punching, bell mouth, etc., to meet the needs of different customers‌1. ‌Easy operation‌: CNC flanging machines usually use PLC operating systems or similar advanced technologies to make operation easier and more intelligent. Ordinary people can perform one-button operation, which is easy to learn and understand‌2. ‌High processing precision‌: Due to the use of CNC technology and high-precision control systems, CNC flanging machines without molds usually have higher processing precision and stability, ensuring the consistency of product quality‌3. In summary, CNC flanging machines without molds have the characteristics of saving equipment costs, improving production efficiency, wide processing range, simple operation and high processing precision. They are one of the important equipment in modern production.

Equipment features: 1. Full CNC control, only need to call up the program when spinning 2. Servo motor controls the motion accuracy of each axis, the product processing diameter is high precision and good consistency 3. Equipped with turning device, can be edge turning, can chamfer workpiece 4. Equipped with mold installation rack, convenient for mold disassembly and assembly 5. Equipped with workpiece loading bracket

Equipment function: flanging, edge drawing, punching, folding (thickness of folding and edge drawing is within 4mm for carbon steel)

Equipment functions: flanging, pulling, punching, folding (the thickness of the folding is less than 4mm for carbon steel) Equipment features: 1. The main axis is equipped with a high-power servo motor and a star reducer to improve the punching efficiency and the accuracy of the indexing. 2. This type of machine with an annual output of about 100 units can provide strong technical support. 3. The support device adopts a cylinder support, which has strong support force and small radial swing when the workpiece rotates. 4. The flange width adjustment adopts a step-type module, the flanging width is more stable, and the adjustment type saves time. 5. The corner star reducer is used to make the machine lower and more convenient to operate.

1. Machine layout: vertical 2. Processing range: fan duct right angle flange flanging, indexing drilling, rib pressing. 3. Mold type: hydraulic internal expansion mode. 4. Operation interface: touch screen 5. Control mode: plc or CNC system 6. Working environment: working environment temperature 0-40
